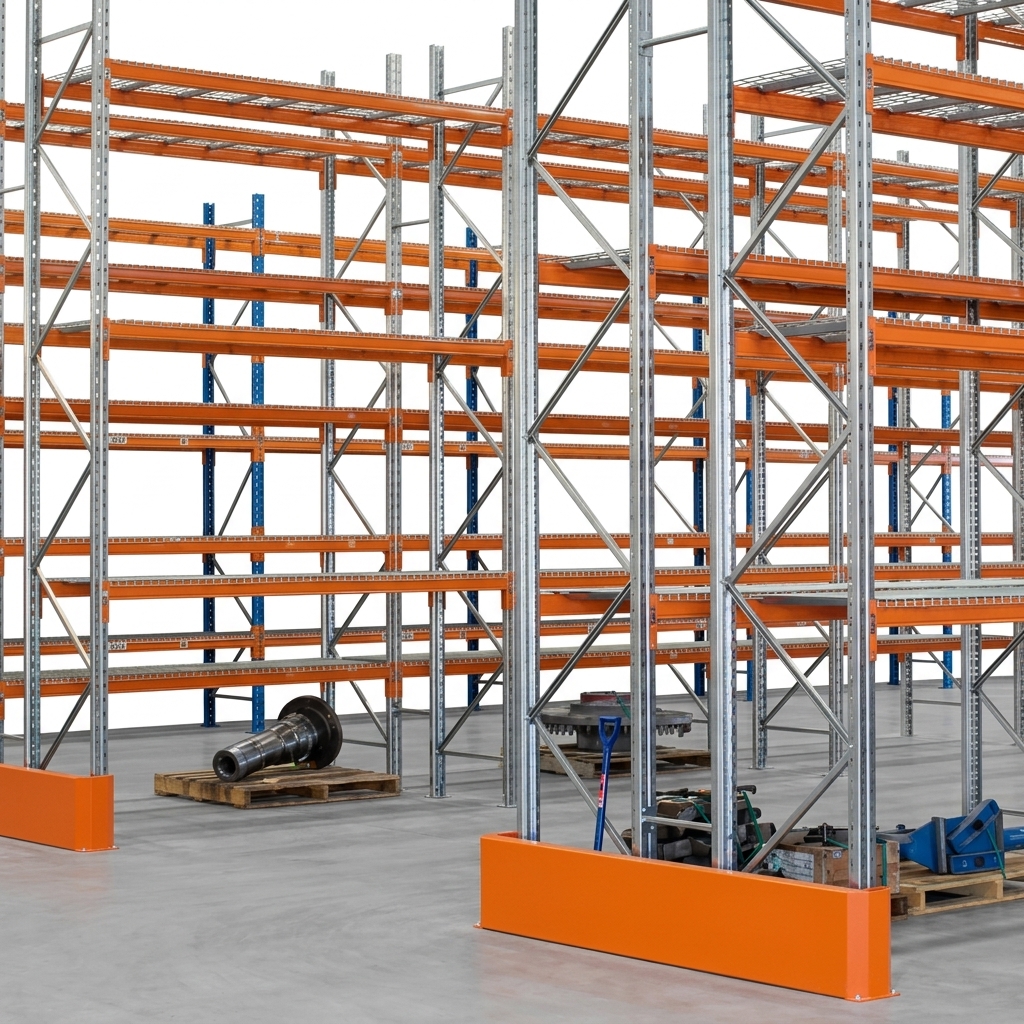

End Row Wrap Barriers

Description

Overall Dimensions:
1090mmL x 225mmD x 400mmH
1470mmL x 225mmD x 400mmH
2360mmL x 225mmD x 400mmH
2530mmL x 225mmD x 400mmH

Internal Length:
960mmL
1340mmL
2230mmL
2400mmL

Uses:
1090mmL compatible with single entry 838mm frames
1470mmL compatible with single entry 1219mm frames or 838mm frame with a 250mm stand-off mesh backing
2360mmL compatible with 838mm frame back-to-back with a 430mm row spacer
2530mmL compatible with 838mm frame back-to-back with a 610mm row spacer

Finish:
Powder coated orange
Hot-dipped Galvanised

Anchor Requirements:
M14 screw or M16 stud anchors are required.
M10 screw or M12 stud are NOT sufficient

Anchor Points:
1090mmL & 1470mmL have 6 anchor points
2360mmL & 2530mmL have 8 anchor points

Compliance:
Meets the requirements outlined in AS4084.1:2023, which mandates upright protectors/guards for all frames at aisle and gangway intersections
